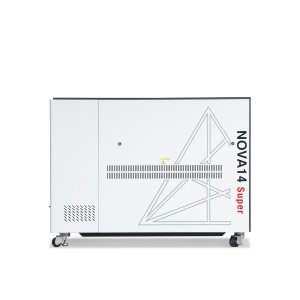

Redline Nova14 Super 100W 130W RF30W RF60W
Unmatched Speed, Exceptional Precision, Boosting Your Efficiency!
How Does The Redline Series Achieve 4200mm/s With 8G Acceleration While Maintaining Precision?
Advanced Motion System: High-performance linear guides and motors.
Stability: Robust frame reduces vibrations at high speeds.
Precision Engineering: Ensures flawless laser head movement.
Robust Unibody
Most lasers use a frame where parts are bolted to a thin shell. For high-speed performance, the frame must be rigid to prevent flexing. The Redline series has a strong frame that stays stable even with the side panel removed, making troubleshooting easier. This rigidity ensures consistent precision at maximum speeds. Additionally, the Redline NOVA can be separated to fit through narrow doors.
Rigid Linear Guide Rail
Linear guide rails with ball bearings offer greater precision and smoother motion, which improves print quality and longevity. Further, AEON Laser has been conducting rigorous test on all kinds of rails for over 7 years, and selected the most rigid one to meet the requirements for high speed and high precision.
Full AC Servo Motor
Step into the true closed-loop era with AEON Laser—no more hybrid servos. Our Full AC Servo Motors deliver instant acceleration at 8G of force, achieving top speeds of 4,200 mm/sec on RF models. While other manufacturers may use similar motors, AEON Laser stands out by combining speed, precision, and longevity, a feat few can match.
Featherweight Laser Head
A lightweight laser head contributes to less over-scanning and an overall reduction in vibration, reducing motor load and significantly enhancing the speed.
Effortless Maintenance: Minimizing Downtime to the Utmost
The primary objective is to reduce maintenance cycles as much as possible. However, if maintenance is required, AEON ensures it can be done effortlessly through its distinctive features, designed for convenience and efficiency.
Tool-Less Optic Path with Laser Tube Docking Station
Eliminate the hassle of traditional tube replacements and beam alignment. AEON’s innovative laser tube docking station lets you seamlessly swap tubes in and out without the need for tools or calibration the optic path. Say goodbye to painstaking adjustments and hello to effortless precision.
Easily Accessible Mirrors
AEON’s mirrors are designed for ultimate convenience, allowing effortless cleaning or replacement without needing tools. Plus, there's no need to re-calibrate after maintenance, ensuring seamless operation and consistent performance.
Magnetic Lens Carriage: Quick and Hassle-Free Maintenance
All Redline Series feature a magnetic lens carriage, making lens maintenance a breeze. The focal lens is secured with a press-fit silicone washer, allowing users to easily clean or swap lenses for various tasks without complications.
Pro-Smart Monitoring & Alert System
All AEON’s Pro-Smart Monitoring & Alert System integrates thermal sensors into all optics to monitor temperature in real-time. These sensors record and report temperature readings directly to the keypad, significantly reducing the risk of unexpected failures. If temperatures rise beyond the safe range, the system triggers an alert, prompting immediate cleaning of mirrors or lenses to maintain optimal performance.
Additionally, the system will remind you to perform essential maintenance tasks, such as greasing the guide rail or draining water from the Redline NOVA’s built-in ultra-quiet compressor, which can be maintained with a single touch.
This proactive approach not only prevents costly mistakes and downtime but also reduces the need for frequent unnecessary cleaning. To enhance functionality further, the controller logs key data, including ambient temperature, laser tube runtime, and machine parameters, serving as a diagnostic record for easy troubleshooting when required.
Modular Design: Simplifying Maintenance & Repairs
AEON’s philosophy of effortless serviceability is embodied in its modular design. Most components are engineered for rapid removal and replacement, featuring quick connectors for maximum convenience. From chillers to sensors and motors, any issues can be resolved swiftly. Simply submit a ticket, and our service team will ensure prompt delivery of the required parts, making replacements straightforward—even for beginners.
Engineered for Endurance: Steadfast Reliability for Perpetual Performance
We focus on more than just a robust structure or rigid components; we go the extra mile to ensure enduring, issue-free performance. Every AEON machine is meticulously designed to deliver lasting reliability, with unwavering performance at the core of its engineering.
Super Clean Pack Design: Enhanced Protection
The Super Clean Pack design goes beyond the basics, enclosing the linear rails and bearing blocks for added protection. Additionally, protective curtains on the left and right side rails prevent unwanted particles from spreading beyond the work area, significantly prolonging the lifespan of the rails and greatly enhancing cutting and engraving quality.
Bullseye Leveling Gauge: Precision Leveling Glance
Each Redline series is equipped with a bullseye leveling gauge, making it easy to ensure your laser is perfectly level—a critical detail often overlooked by engineers. Proper leveling is essential; without it, axles experience increased friction and distortion, significantly shortening the lifespan of the rails.
Mechanical Micro Switch: Enhanced Reliability & Durability
AEON's engineering team has incorporated mechanical microswitches in the Redline series, replacing the previous photoelectric limit sensors. These microswitches are built to last, offering over 200,000 cycles of flawless operation, ensuring exceptional reliability and performance.
Optical Path Securely Sealed
AEON Laser takes every measure to protect your equipment and enhance its longevity. Our engineers have enclosed the laser path in durable aluminum tubes, providing a robust barrier against dust and debris. Additionally, we’ve incorporated protective lenses for the mirrors to further safeguard the optical components. This design significantly reduces the frequency of maintenance, ensuring a longer lifespan for your laser tubes, mirrors, and lenses.
Intuitive & User-Friendly Design
Whether you're upgrading from a hobby laser or starting fresh, AEON's intuitive, user-friendly interface ensures smooth operation and a quick learning curve. Our streamlined workflow allows you to get up and running effortlessly, making it easier than ever to harness the full potential of your laser system.
Ultra Safe: Prioritizing Your Health and Safety
The importance of safety when using the laser machine cannot be overstated. AEON cares about your heath and safety all the time. We have taken numerous steps to ensure that.
TÜV Certified
We take pride in meeting the rigorous testing standards set by the world-renowned TÜV Rheinland. Their comprehensive safety testing and expert knowledge have been invaluable in ensuring the highest level of quality and safety for our products.
Class I Laser Product
AEON Laser’s Redline series features a fully enclosed cabinet with fail-safe interlocks on all doors to prevent electrical leaks and potential risks. Its radiation levels are much lower than those of a Class I laser product.
State-of-the-Art Design, Unmatched Brilliance in Detail

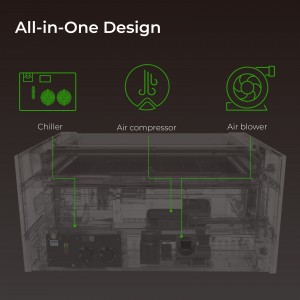

Compact All-In-One Solution
If space is of concern, you’ll be pleased to know that Aeon is the first in the laser industry to offer an all-in-one solution comprised of an integrated water cooling system, exhaust fan, and air assist pump so that no extra space is needed for ancillary components ,minimize the footprint of the machine and make your workspace neat and more organized.
LED Status Light
The Aeon Laser logo on the front access door panel is now backlit and doubles as a functional Status Light, illuminating white when in standby, red when an error is encountered, and green while in operation, adding both form and function to an already stunning design.
Brighter Illumination
The already well-lit work area just got brighter with the addition of 2 more LED lights on the underside of the MIRA lid, just behind the handle. When the lid is opened, the 2 interior LEDs turn off and the overhead lights turn on to illuminate your work area, while loading material and using the camera. There is even a dimmer knob on the side of the machine for setting the mood just right.
Every Detail Crafted for Your Comfort
When you peer into the working area, you'll notice no unsightly screws, exposed rails, or excess gaps. We've carefully separated the mechanical and electrical components, sealed the entire cabinet with a soft silicone strip, and shielded the ball screw with a protective brush. Additionally, every cooling fan is equipped with filters. Every detail is meticulously arranged to ensure both functionality and your comfort...
| Parameters | Model | Nova10 Super/Elite | Nova14 Super/Elite | Nova16 Super/Elite |
| Working Scope | Working Area (mm) | 1000*700mm | 1400*900mm | 1600*1000mm |
| Z Axis Lifting Space | 200mm | 200mm | 200mm | |
| Max Lifting Capacity | 120KG | 120KG | 120KG | |
| Laser Tube | Laser Tube Power | Glass: 90W/100W RF: 30W/60W |
Glass: 90W/100W/130W RF: 30W/60W |
Glass: 90W/100W/130W/150W RF: 30W/60W |
| Motion system | Max Engraving Speed | 4000mm/s (Super) 1200mm/s (Elite) |
4200mm/s (Super) 1200mm/s (Elite) |
4200mm/s (Super) 1200mm/s (Elite) |
| Acceleration | 8G (Super) 5G (Elite) |
8G (Super) 5G (Elite) |
8G (Super) 5G (Elite) |
|
| Accuracy | Minimum Font Size(RF Tube) | 1.0×1.0mm | 1.0×1.0mm | 1.0×1.0mm |
| Positioning Accuracy | <=0.1mm | <=0.1mm | <=0.1mm | |
| Configuration | Working Table | Honeycomb + Blade table | Honeycomb + Blade table | Honeycomb + Blade table |
| Cooling system | Glass: Built-in 5000 chiller RF: Air-cooled |
Glass: Built-in 5200 chiller RF: Air-cooled |
Glass: Built-in 5200 chiller RF: Air-cooled | |
| Fume Exhaust Fan | Built-in 500W (Auto Start-stop) | Built-in 500W (Auto Start-stop) | Built-in 500W (Auto Start-stop) | |
| Air Assist | Built-in compressor 750W with 24L air tank (Auto Start-stop) | Built-in compressor 750W with 40L air tank (Auto Start-stop) | Built-in compressor 750W with 40L air tank (Auto Start-stop) | |
| Auto Focus | √ | √ | √ | |
| Wireless Connectivity | √ | √ | √ | |
| Red Dot Positioning | √ | √ | √ | |
| Camera | 100° 8 megapixel (3840×2160) | 100° 8 megapixel (3840×2160) | 100° 8 megapixel (3840×2160) | |
| Internal Memory | 1G | 1G | 1G | |
| Operating Software | Rdworks/Lighburn(Optional) | Rdworks/Lighburn(Optional) | Rdworks/Lighburn(Optional) | |
| Compatible Design Software | CorelDraw/Illustrator/AutoCAD | CorelDraw/Illustrator/AutoCAD | CorelDraw/Illustrator/AutoCAD | |
| Package | Machine Dimension(mm) | 1500*1210*1125 | 1900*1410*1125 | 2100*1510*1125 |
| Net Weight (KG) | 415KG | 560KG | 566KG | |
| Gross Weight(KG) | 532KG | 683KG | 730KG | |
| Optionals | Rotary Clamp/Lightburn Software /Air Purifier | |||
