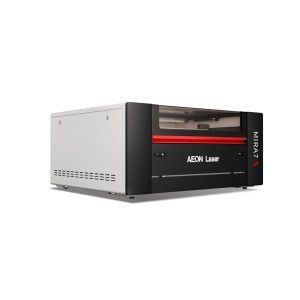

MIRA7 S 45W/60W/RF30W/60W/80W/90W CO2 Laser
Power Performance
- Fastest in its class: 4000 mm/s engraving speed with RF tube, 1200mm/s with glass tube
- Acceleration 5G
- Hassle-free maintenance: due to Clean Pack Design and Magnetic Laser Head
- Material: Wood, glass, paper, leather, textiles, acrylic and many others
- Pass-through door for oversized size items
- Full safety - Class 1 Laser Machines for your peace of mind
- First in the Industry - flat work table with easy jigs mounting
Intelligent Detection and Diagnosis System
(Mira 7s/9s Only)
A unique and fast Detection and Diagnosis System that
oversees the machine's operations with easy access via
the control panel. Stay on the safe side and receive
immediate alerts about issues through loud audio
signals.
90% Reduction in Optical Path Alignments
Easily replace optical components (laser tube, mirror, lens) without the need for optical path alignments, ensuring quick and convenient maintenance.
Multi-Functional Work Table
Turn your cutting table into a flat table within seconds and
easily mount jigs.
Plus, it comes with a honeycomb table for engraving tasks. Get versatility and efficiency all in one!
Magnetic Design
Effortless Lens Snap-On, Snap-Off!
Material Pass-through Door
Easily work even on bigger pieces!
All-in-one Design
All the external accessories (air compressor/chiller/air blower) are built-in.
Fully Enclosed Dust-proof Guide Rail
A fully sealed linear guide protects the guide rail and light path from dust, resulting in a significant reduction in maintenance frequency.
High-resolution LightBurn Camera included
- Easily position your artwork on the workpiece.
Import your artwork into LightBurn and effortlessly position your objects by dragging and dropping them onto the work area.
Trace the shape feature
Utilize the LightBurn camera to capture a shape or a marker pen drawing, and with customizable trace features, instantly convert it into a cutting or engraving vector file.
Which one Suits you？
| Parameters | Models | Mira5 S | Mira7 S | Mira9 S |
| Basic Information | Working Area（mm） | 500*300 | 700*500 | 900*600 |
| Z Axis Lifting Space(mm) | 120 | 140 | 150 | |
| Max Lifting Capacity(KG) | 15 | 25 | 25 | |
| Glass Tube Options | Laser Power | 45W/60W | 45W/60W/80W/90W | 45W/60W/80W/90W/100W |
| Max Engraving Speed | 1200mm/s | 1200mm/s | 1200mm/s | |
| Acceleration | 5G | 5G | 5G | |
| Cooling Method | Built-in 3000 chiller | Built-in 3000 chiller | Built-in 5000 chiller | |
| RF Tube Options | Laser Power | 30W/60W | 30W/60W | 30W/60W |
| Max Engraving Speed | 3500mm/s | 4000mm/s | 4000mm/s | |
| Acceleration | 8G | 8G | 8G | |
| Cooling Method | Air | Air | Air | |
| Accuracy | Minimum Font Size(RF Tube) | 1.0×1.0mm | 1.0×1.0mm | 1.0×1.0mm |
| Positioning Accuracy | <=0.1mm | <=0.1mm | <=0.1mm | |
| Configurations | Air Assist | Built-in | Built-in | Built-in |
| Working Table | Honeycomb table+Aluminum bar table | |||
| Fume Exhaust Fan | Built-in | Built-in | Built-in | |
| XY axis fully dust-proof design | √ | √ | √ | |
| AutoFocus | √ | √ | √ | |
| Wifi Data Transfer | √ | √ | √ | |
| Red Dot Positioning | √ | √ | √ | |
| Material Pass Through Door | √ | √ | √ | |
| Camera | √ | √ | √ | |
| Intelligent Warning & Diagnostic | Smart Panel (monitoring function) | × | √ | √ |
| Fault alarm and diagnosis | × | √ | √ | |
| Operation status light | √ | √ | √ | |
| Package | Machine Dimension(mm) | 900*700*410 | 1128*945*510 | 1328*1070*530 |
| Net Weight (KG) | 110 | 185 | 225 | |
| Gross Weight(KG) | 125 | 235 | 295 | |
| Optionals | Rotary Clamp；Support Table；Lightburn Software； | |||
